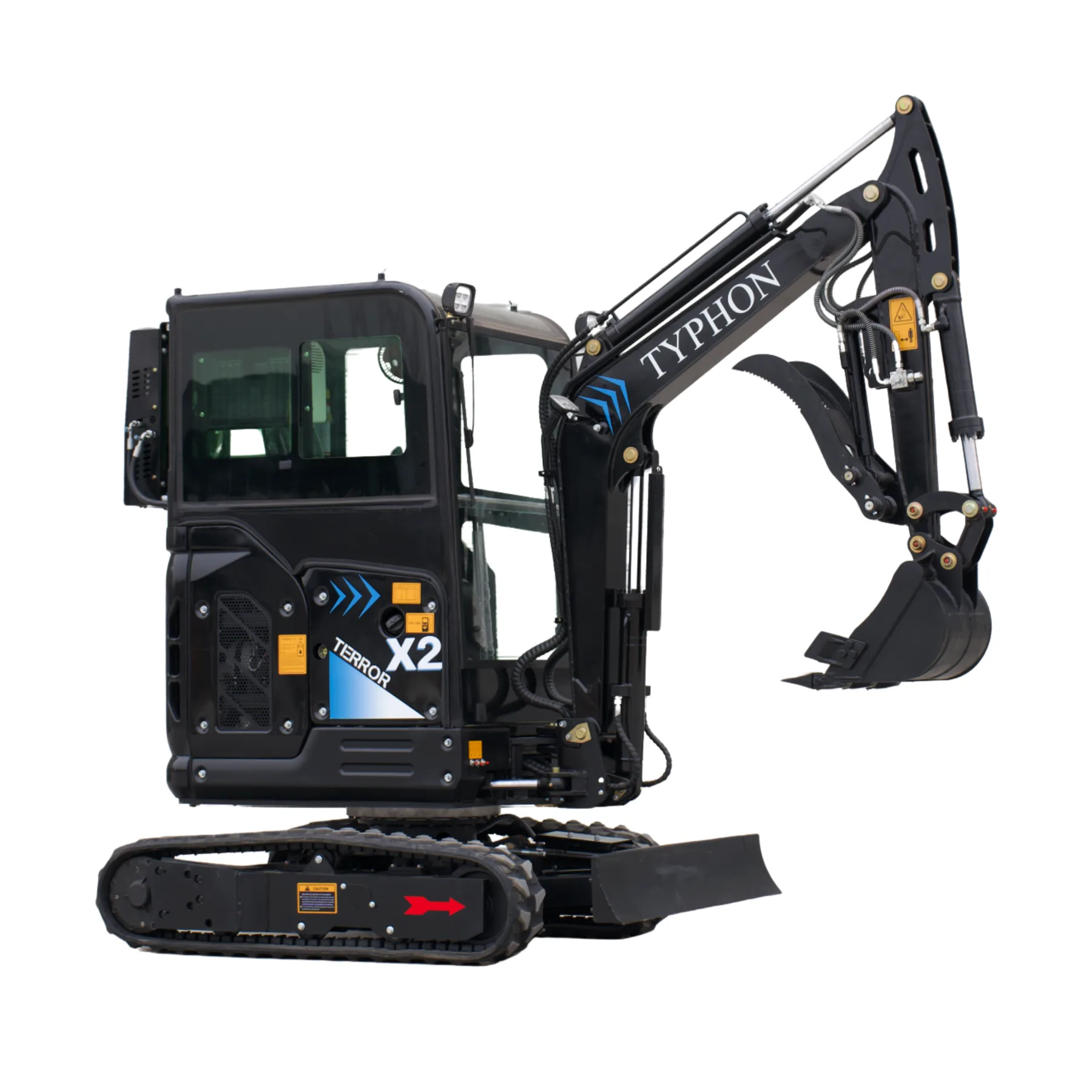

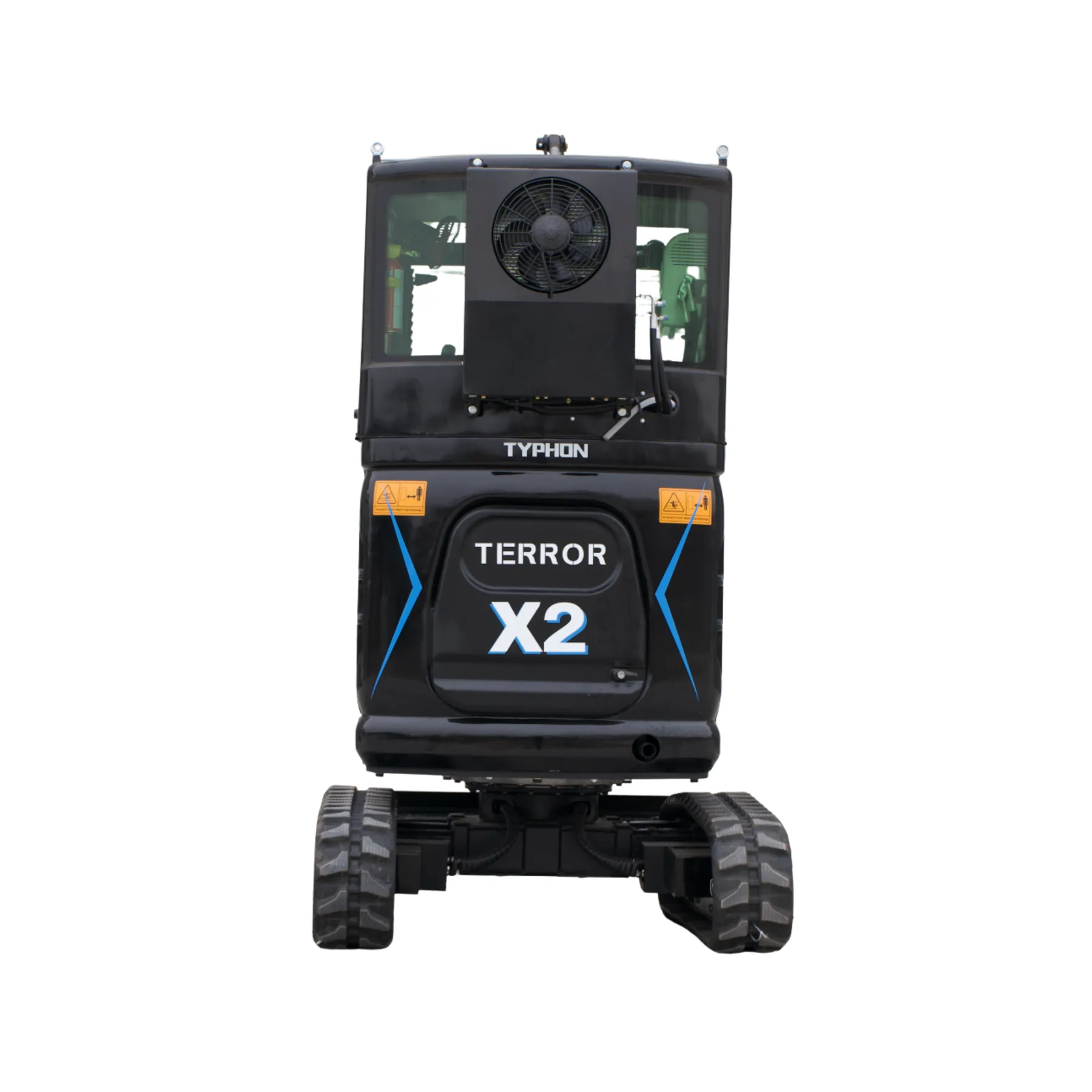

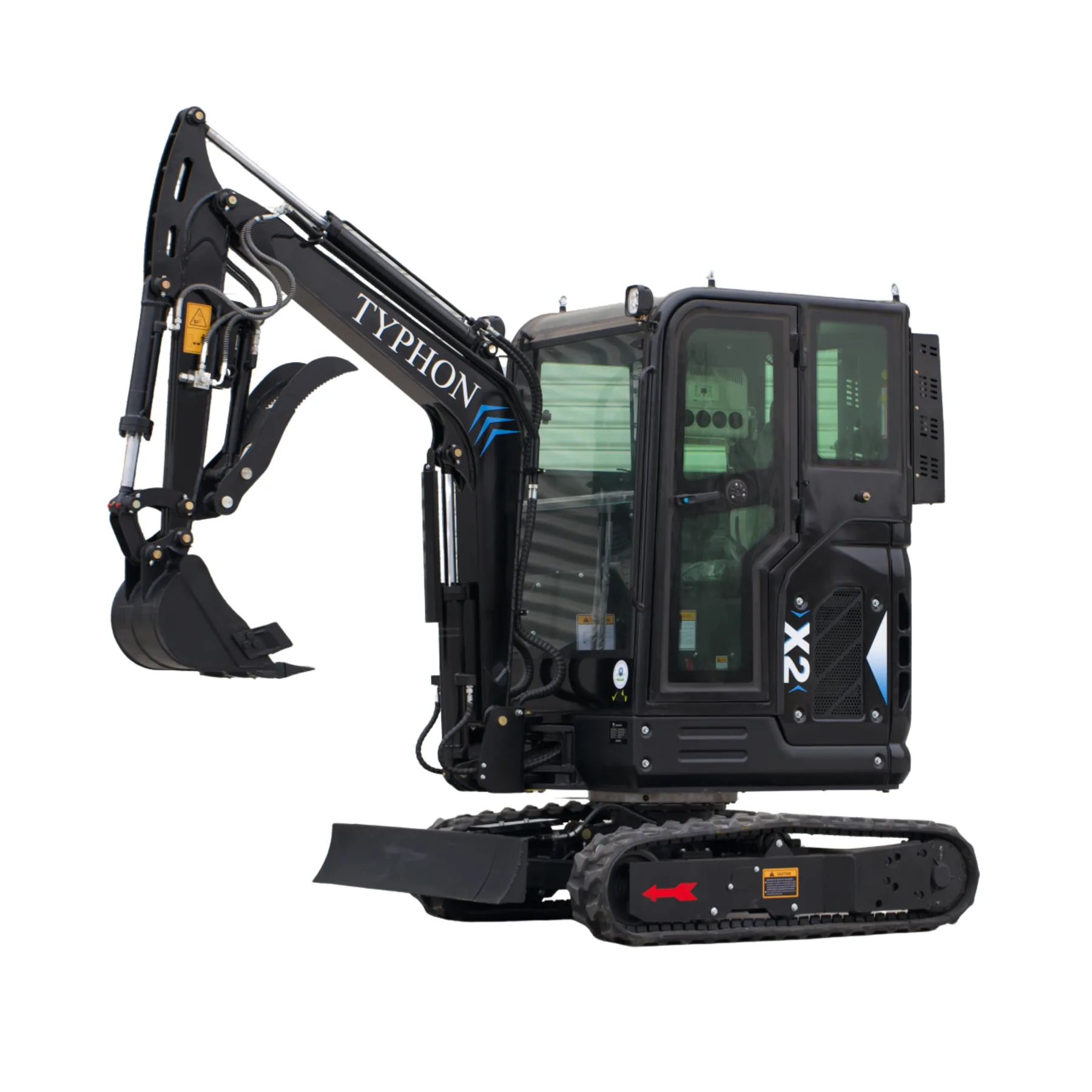

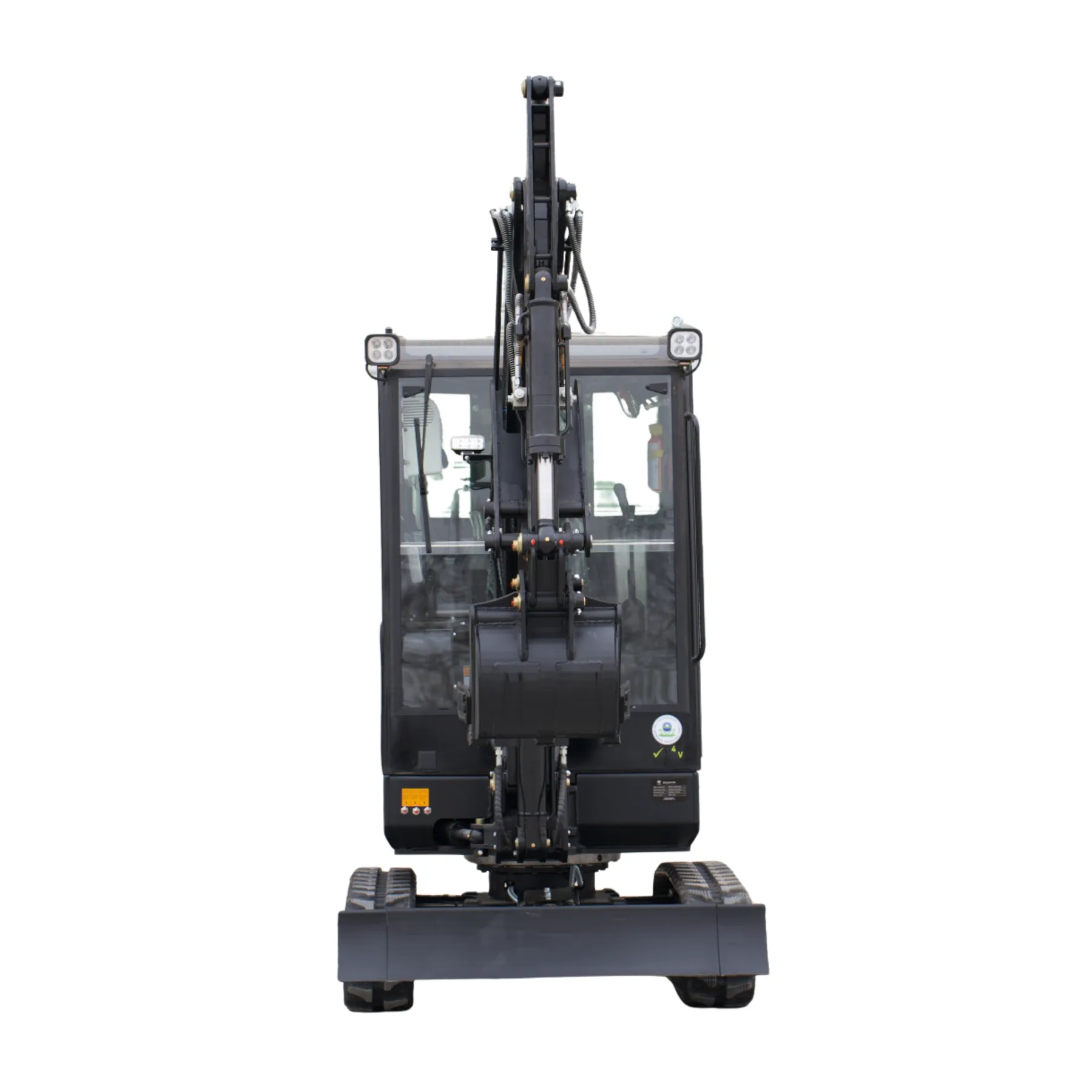

TYPHON TERROR X2 MAX 2.7-Ton Mini Excavator Powerful, Yanmar Engine, Cabin with A/C & Heater, Pilot Control, Boom Swing

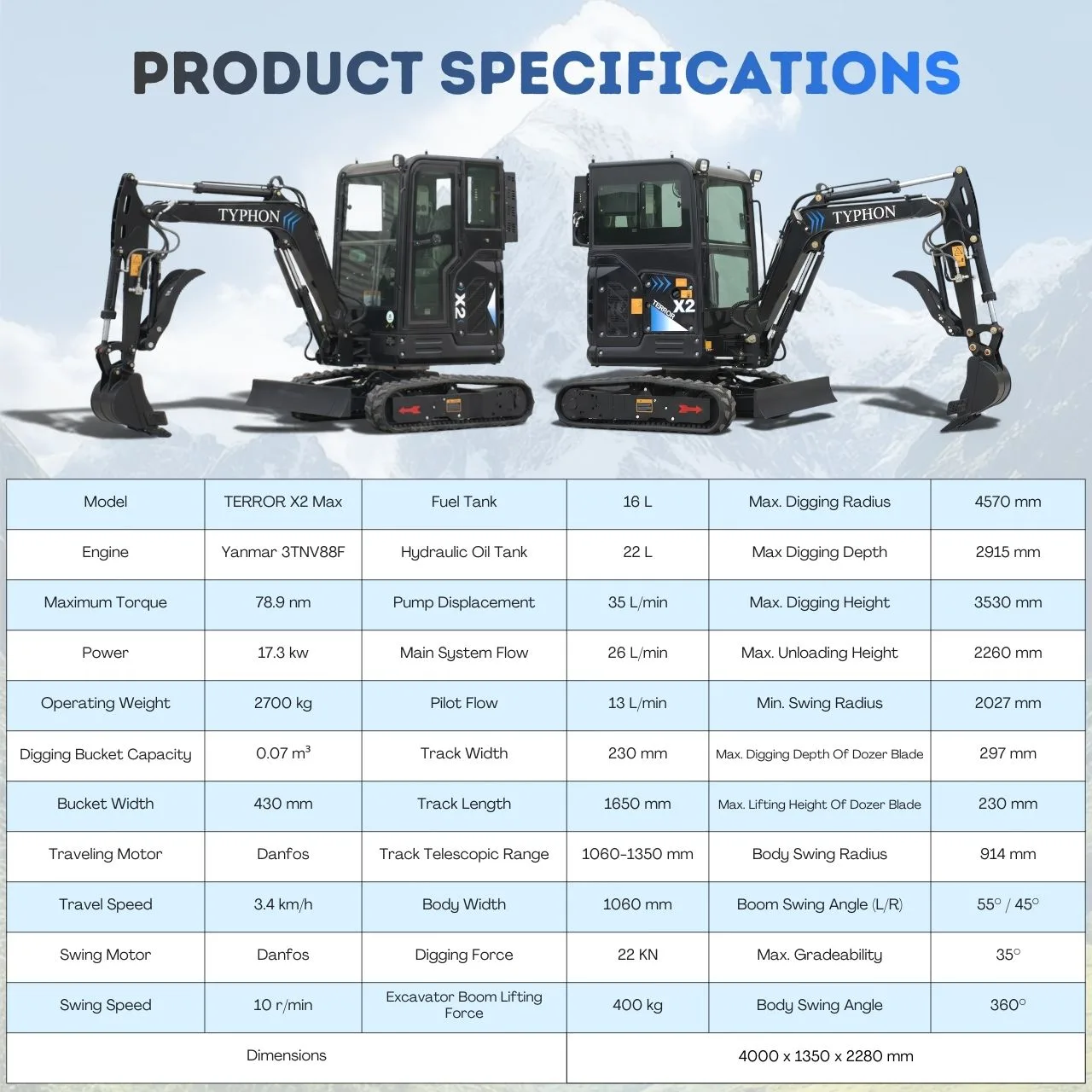

The TYPHON TERROR X2 MAX is a space-efficient, multi-purpose mini excavator engineered for limited jobsite zones and accuracy work in residential, landscaping, and small building jobs. With a 2.7 Ton operating weight and a slim 41.7 in body width, it provides steady balance and easy access to narrow job sites. It supplies a maximum digging depth of 9.56 ft, 360° body swing, and a 16.9 in bucket for effective and accurate excavation. Outfitted with a Danfoss traveling motor and a 2.47 cu ft bucket capacity, it handles trenching, drainage, foundation work, and material moving with capable and reliable output. Built with a 23.2 HP Yanmar 3TNV88F diesel engine and supported by a 4.23 gal fuel tank and 5.81 gal hydraulic tank, the machine combines power, operating output, and extended service toughness. Operator-friendly provides such as a safety lock, swing boom, track telescope switch, LED lighting, intuitive controls, and a 2.11 MPH travel speed support safe, accurate, and effective operation on any job-site.

TYPHON TERROR X2 MAX Main Machinery Benefits:

1. A strong choice built for Tight-Space Tasks:

the TYPHON TERROR X2 MAX is built for accuracy work in confined environments, including residential sites, landscaping jobs, utility trenches, and small construction zones. Its space-efficient size and 41.7 in body width support easy access through narrow pathways while maintaining steady balance. Strong digging output is provided by a 9.56 ft maximum digging depth, 14.99 ft digging radius, and 7.41 ft maximum unloading height. The 16.9 in bucket width promotes controlled excavation with high accuracy. A full 360° body swing, tight swing radius, and boom swing angle of 55° left and 45° right support refined operation in limited jobsite zones. The durable undercarriage offers 9.1 in wide tracks with a 65 in track length for steady traction and balance. An integrated dozer blade raises grading and stability, delivering a 11.7 in digging depth and 9.1 in lifting height. Overall dimensions of 157.5 × 53.1 × 89.8 in make transportation and storage simple and effective.

2. One Machine, So Many Uses:

Made to handle a many different tasks, the TYPHON TERROR X2 MAX provides operating output and dependability across different working conditions. The Danfoss traveling motor supports controlled travel and accurate control on varied terrain. With an excavator boom lifting force of 882 lb, a digging force of 4,946 lbf, a main system flow of 6.87 GPM, and a travel speed of 2.11 MPH, the machine combines toughness with agility. Its 2.47 cu ft bucket capacity is well-suited for trenching, landscaping, drainage, foundation work, and material moving. The machine also supports multiple implements, enabling digging, trenching, lifting, breaking, and site cleanup. This versatility supports one space-efficient machine to complete multiple tasks productively, saving time, space, and operating costs.

3. Strong but space-efficient Design:

the TYPHON TERROR X2 MAX combines space-efficient dimensions with reliable power for demanding work in limited spaces. It is built with the Yanmar 3TNV88F diesel engine, producing 23.2 HP (23.2 HP@ 2200rpm) of effective, low-emission output. Its 1.642-liter, 3-cylinder inline design provides refined operation, strong torque, and outstanding fuel economy through direct injection and natural aspiration. The hydraulic system provides a 3.43 GPM pilot flow and a high-quality Danfoss swing motor, offering controlled rotation at a 10 r/min swing speed. A 16-liter fuel tank and 22-liter hydraulic oil tank support long working hours with fewer refueling interruptions. The telescopic undercarriage with a track range of 1,060–53.1 in raises stability during operation while maintaining space-efficient access when needed. Simplified maintenance and well-positioned lubrication points strengthen longevity and long-term productivity.

4. Easy Control:

the TYPHON TERROR X2 MAX is engineered for operator comfort, safety, and ease of use. Pilot and full hydraulic controls support controlled, accurate operation for digging, lifting, and positioning tasks. A built-in safety lock system supports immediate machine shutdown when engaged, reducing the risk of accidental operation. Switch buttons for the swing boom and track telescope functions promote quick adjustments without interrupting workflow. The AC/heater cabin with an openable front window supports operator comfort in all weather conditions, while bright LED lights raise visibility in low-light environments. An intuitive control panel places all essential functions within easy reach, minimizing learning time and improving operating output. With a 2.11 MPH travel speed, the TERROR X2 MAX moves smoothly around the job-site, reducing repositioning time and keeping jobs on schedule.

5. Gear Included:

• comes equipped with 1 x standard digging excavator bucket, 1 x hydraulic oil cooler, and 1 x hydraulic thumb clip.
• Includes 1 x toolbox, 1 x cabin (AC/Heater), and 1 x digital manual using comprehensive instructions.

Additional Provides:

✔ Yanmar 3-Cylinder Diesel Engin

✔ Retractable Undercarriage (1,060–53.1 in)

✔ Cabin using A/C & Heater

✔ Pilot Control System

✔ Boom Swing Function

✔ 360° Full Rotation

✔ Fully Hydraulic System Control

Why Choose TYPHON MACHINERY?

Customer Assurance: We provide responsive service and steady parts support to support your machine runs smoothly for years.

Output You Can Trust: Every TYPHON excavator remains Powered by premium components for longevity, output, and operator safety.

Global Dependability: Trusted by contractors and builders across This USA and beyond for offering steady quality and operating output.
